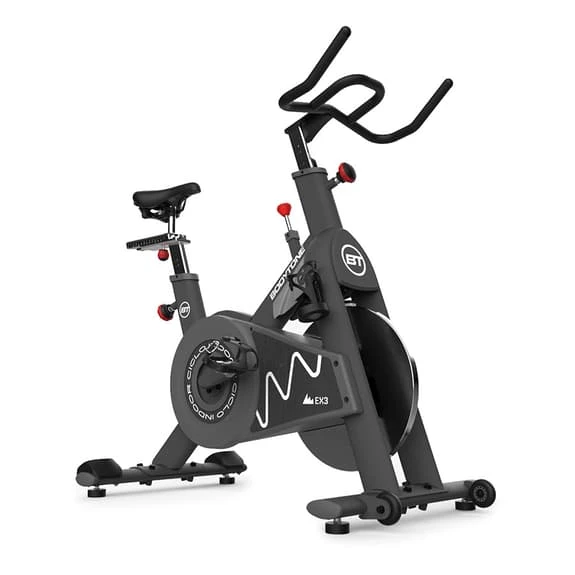

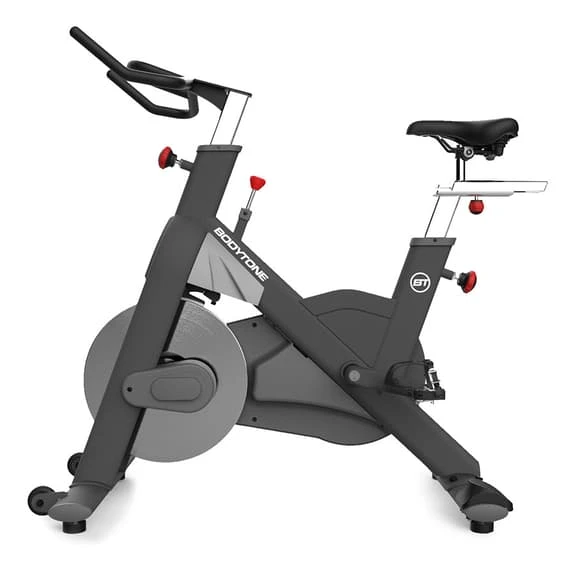

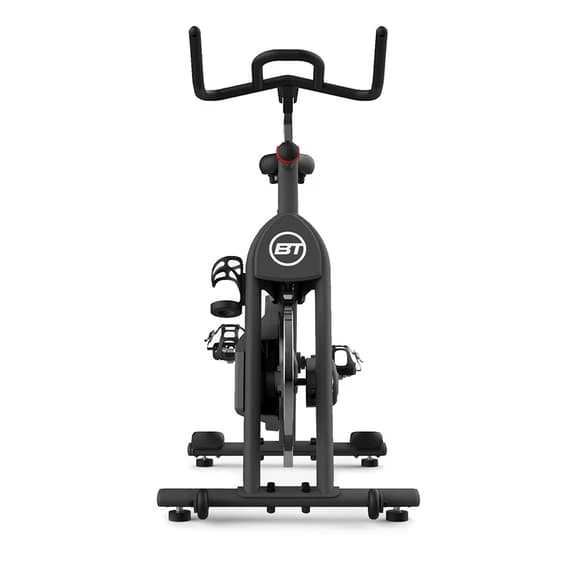

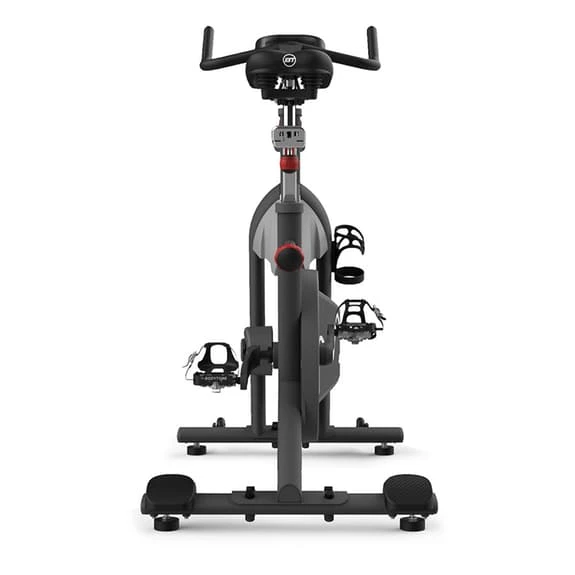

BodyTone EX3 Indoor Bicycle

The BodyTone EX3 indoor bike is a high performance indoor bike for professional athletes and together with the Bodytone M20 display a stimulating power trainer for all types of athletes. The EX3 provides exceptional results for facilities working with specific cycle training, high-intensity interval training and resistance training.

It offers a set of unique features such as its splash-proof structure liner that protects it against damage caused by moisture, its POLY-V belt drive system that through the 6 Kevlar cord Poly-V grooved belts have been designed to offer an incredibly smooth and fluid ride, with an extremely realistic feel. Kevlar ropes are stronger and last longer than materials traditionally used in belt drive systems, resulting in a virtually maintenance-free product that does not need to be tensioned or lubricated.

Features:
– Measurements: 125 x 60 x 105 cm
– Weight: 67.9 kg
– Maximum user weight: 150 kg
– Inertia flywheel set: 20 kg steel front with stainless steel braking area
– Transmission: Poly V strap. The Poly V has been designed with a larger contact surface than V-belts or flat belts. The best transmission ratio compared to a normal belt
– Braking: Upper shoe with friction and locking system
– Protection: Front and side protection on steering wheel and bottom bracket made of TPR, which prevents rust and corrosion caused by sweat. ABS back protectors for stretching
– Bottom bracket: Special design, larger and grooved with NTN bearings, with double system on the right side. This double bearing reinforces our bottom bracket to avoid torsion
– Pedals: Mixed SPD. VP- x93. Dual-use, perfect for use with cycling shoes with cleats and regular sneakers
– Q-factor: 158 mm / 6.2 inches
– Saddle: Special EVA padding base for indoor cycling. Covered in leatherette. Exclusive Bodytone design with extra comfortable pelvic zone drainage. Seat with cushioning system
– Display: Optional. Battery operated (included). Water resistant. Easy to understand bar graph interface. It measures average speed, average cadence (rpm), calorie consumption, time and distance. High wireless speed of 2.4 GHz and heart rate measurement (5K)
– Seat post: Adjustable in height. Locking by means of a threaded bolt. Horizontal saddle slide with nylon strip for uniform sliding
– Handlebar: Ergonomic and covered in porous foam, anti-allergic and easy to clean. In steel with 8 vertical positions. Pop-pin adjustment types
– Handlebar grip: Stripped steel quality E-220 + CR2 S2 2.5 mm thick, with chrome surface finish in 3 phases. Laser cut position selector holes. Aluminium optional
– Safety: Emergency pressure brake by means of pop-pin
Accessories: Side bottle rack
– Shell: 3 mm thick steel tube welded by robotic process
– Transport: Integrated transport wheels for easy transport or cleaning of the machine
– Levelers: 4 levellers in height facilitating stability
– Painting process: 3 coats of paint. Pickled and stabilized steel by total immersion of the parts in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Rustproofing primer to ensure adequate insulation from internal oxidation and good paint adhesion. 2 final coats of epoxy polyester powder paint, dried at 240oC
