Bodytone SMB1 V1+ Indoor Bike Smart Bike Ciclo Indoor

The Bodytone SMB1 v1+ indoor bike was inspired by the movement of road cycling and triathlon. The SMB1 v1+ is a high-performance indoor bike for professional athletes and an exhilarating power trainer for all types of athletes. With more accurate performance data than any other indoor bike, this model provides exceptional results for facilities working with specific cycle training, high intensity interval training and resistance training.

It offers a set of unique features such as its splash-proof structure liner that protects it against damage caused by moisture, its POLY-V belt drive system that through the 6 Kevlar cord Poly-V grooved belts have been designed to offer an incredibly smooth and fluid ride, with an extremely realistic feel. Kevlar ropes are stronger and last longer than materials traditionally used in belt drive systems, resulting in a virtually maintenance-free product that does not need to be tensioned or lubricated.

Features:

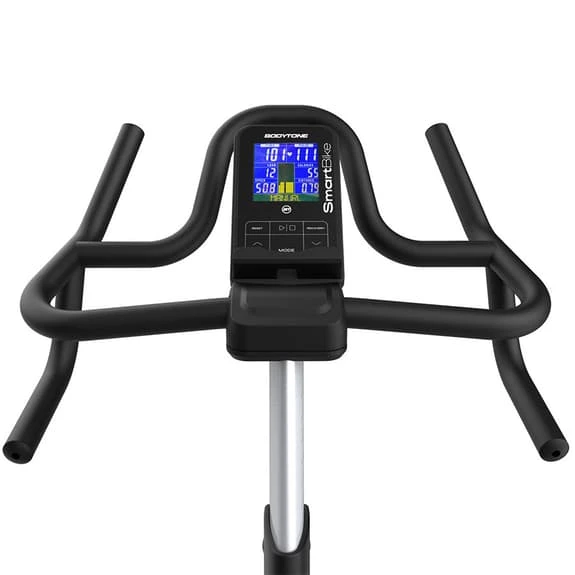

– Console:
Dimensions 192 x 105 x 32 mm Mobile / tablet holder included. LCD of measures 71×66 mm with backlight. Water resistant. Easy to understand bar graph interface. Measures speed, cadence (rpm), calorie consumption, time, distance and WATT. 12 preset programs, Bluetooth 4.0 connectivity and heart rate measurement via Bluetooth heart rate monitor

– Inertia flywheel set:
Rear equivalent to 22 Kg in chrome steel

– Transmission:
Poly V 15mm. belt with tension regulation. The Poly V is designed with a larger contact surface than V-belts or flat belts. Excellent transmission ratio compared to a standard belt

– Protectors:
Full side and rear flywheel fairing made of 3MM ABS, which prevents rust and corrosion on metal and electrical parts caused by sweat

– Pedals:
Mixed SPD. Dual-use, perfect for use with cycling shoes with cleats and regular sneakers

– Handlebars:
Made of 3mm steel covered with a layer of porous foam, making it easier to grip and allowing easy cleaning. Ergonomic with multiple grip, open outside, closed center and low cycling

– Handlebar stem:
Grey painted steel. Adjustment in vertical position by pop pin positioner lever with 11 positions

– Saddle:
Special EVA padding base for indoor cycling. Covered in leatherette. Exclusive Bodytone anti prostate design in pelvic area, offering extra comfort

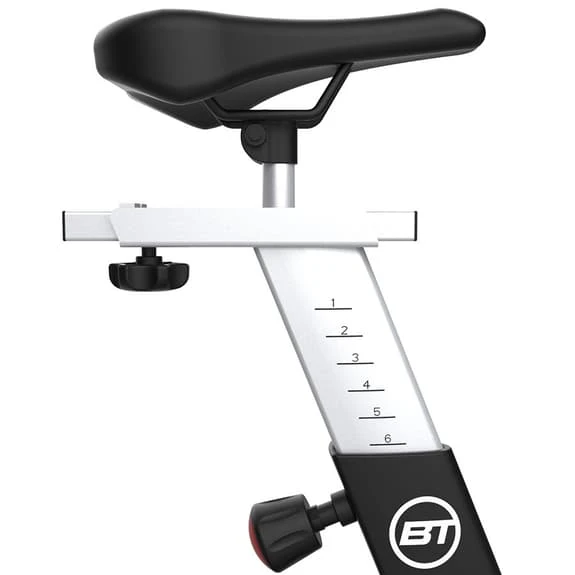

– Seat Post:
Grey painted steel. Position adjustment every 19 mm with 16 different positions. Adjustment in horizontal position by pressure threaded bolt. Vertical adjustment by means of a threaded pin. Horizontal saddle slide with nylon strip for uniform sliding

– Bottom bracket:
Special design, it is 28 mm thick and grooved. NTN bearings 47mmx12mm, with triple bearing system, double on the right side. This double bearing reinforces the bottom bracket to prevent twisting and deformation

– Flywheel shaft:
Special design, it is 20 mm thick and grooved. NTN bearings 35mmx11mm, with triple bearing system, double on the right side. This double bearing reinforces the bottom bracket to prevent twisting and deformation

– Intensity regulation:
Magnetic intensity control, with 32-position motorized regulation

– Safety:
Emergency brake by lever. Friction pad

– Shell:
3 mm thick steel tube welded by robotic process

– Integrated transport wheels: Integrated, for easy transport or cleaning of the machine

– Levelers:
4 levellers in height facilitating stability

– Painting process:
3 coats of paint. Pickled and stabilized steel by total immersion of the parts in different degreasing solutions to guarantee a perfect and complete cleaning of the base material. Rustproofing primer to ensure adequate insulation from internal oxidation and good paint adhesion. 2 final coats of epoxy polyester powder paint, dried at 240ºC

– Design process:
biomechanical and ergonomical study under the supervision of professionals and associated athletes. After a long period of design; from sketching, engineering research, prototype production, testing by professional athletes of the products that go to market

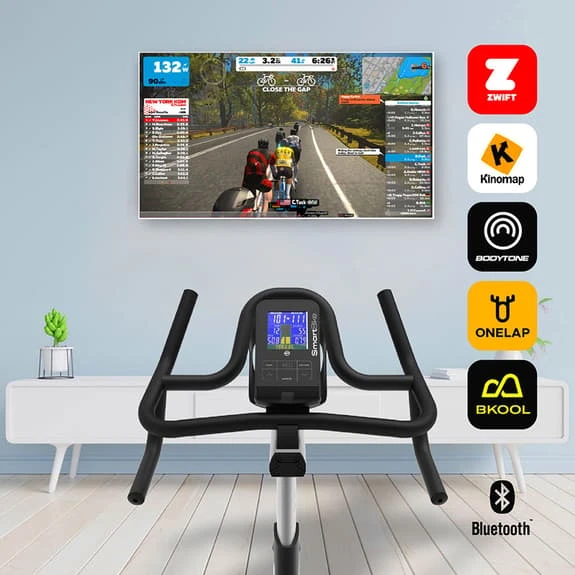

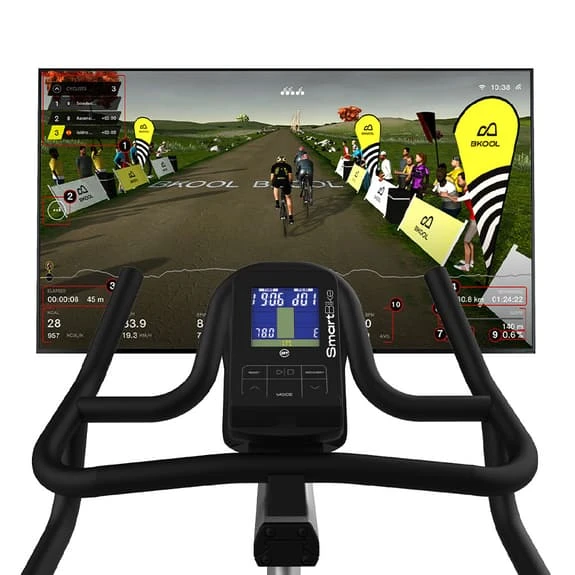

– Connectivity:
The console incorporated in this bike implements bluetooth 4.0 technology that allows it to connect with Android and IOS devices and send the data of the exercise session in real time to applications such as Zwift, Bkool, Mybodytone, Kinomap, among others. Interactive virtual ride simulation, push-button shifting simulation and ERG (target power training) training mode. It also allows you to link Bluetooth heart rate monitors Polar brand and compatible with Bluetooth 4.0

Technical specifications:
– Measurements: 122x 56 x 117 cm
– Weight: 60 kg
– Maximum user weight: 150 kg
– Q-factor: 170 mm / 6.69 inches
